Water: Energy, Orbitals, and Charges

A single-point DFT calculation is the simplest OpenQP run. Here it gives the total energy of water, the energy of every molecular orbital, pictures of the frontier orbitals, the dipole moment, and Mulliken atomic charges.

Water at the PBE0/6-31G* geometry

HOMO (1b1): the oxygen lone pair perpendicular to the molecular plane

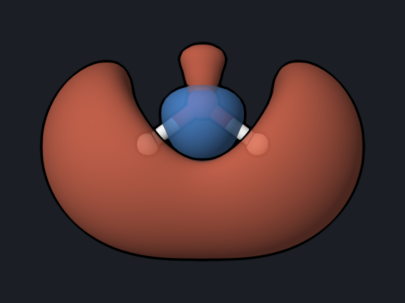

LUMO (4a1): O–H antibonding

Copy and run

water-scf.oqp

dft/pbe0/6-31g* properties(scf_prop="el_mom,mulliken")
geom="""
O      0.000000     0.000000     0.122745
H      0.000000     0.759541    -0.471922
H      0.000000    -0.759541    -0.471922
"""

Download water-scf.oqp

openqp water-scf.oqp

The first line chooses DFT with the PBE0 functional and the 6-31G* basis set. No task keyword means a single-point energy. properties(scf_prop=...) requests the dipole moment (el_mom) and Mulliken charges (mulliken); without it, OpenQP prints only the energy and orbitals. The coordinates are in ångström. This run takes about 2 seconds.

What you get

Quantity	Reference value
Total energy	−76.3256994 hartree
SCF iterations	8
Point group detected	C2v
HOMO energy (1b1)	−0.30453 hartree (−8.29 eV)
LUMO energy (4a1)	0.08193 hartree (2.23 eV)
HOMO–LUMO gap	10.52 eV
Dipole moment	2.125 debye
Mulliken charges	O −0.803, H +0.402

The SCF section of water-scf.log ends with the converged energy. OpenQP prints RHF for any closed-shell reference, including Kohn–Sham DFT:

 Final RHF energy is      -76.3256993935 after   8 iterations

OpenQP labels every orbital with its symmetry in the detected point group:

   point group:      c2v
   alpha MOs:
       1      -19.21076550  a1
       2       -1.02527488  a1
       3       -0.53207181  b2
       4       -0.38604085  a1
       5       -0.30452890  b1
       6        0.08193402  a1

Orbitals 1–5 are occupied (10 electrons). Orbital 1 is the oxygen 1s core orbital, orbitals 2–4 are the O–H bonding and in-plane lone-pair orbitals, and orbital 5, the HOMO, is the out-of-plane oxygen lone pair. The dipole moment and charges follow:

    electric dipole (Debye):
                                                   X              Y              Z             Norm
                                         D_o    -0.00000000    -0.00000000    -2.12548100     2.12548100

       #    Name        Charge
------------------------------
       1    O        -0.803453
       2    H         0.401727
       3    H         0.401727

The dipole lies along the C2 axis (z), as symmetry requires. The value is larger than the experimental gas-phase dipole of water (1.85 D), which is typical of a small basis set without diffuse functions. Mulliken charges depend strongly on the basis set and are useful for trends, not as absolute values.

The SCF iterations

The energy change and the DIIS error fall by about an order of magnitude per iteration once DIIS takes over at iteration 2; the run stops when the error is below the threshold of 10⁻⁶.

All valence orbitals

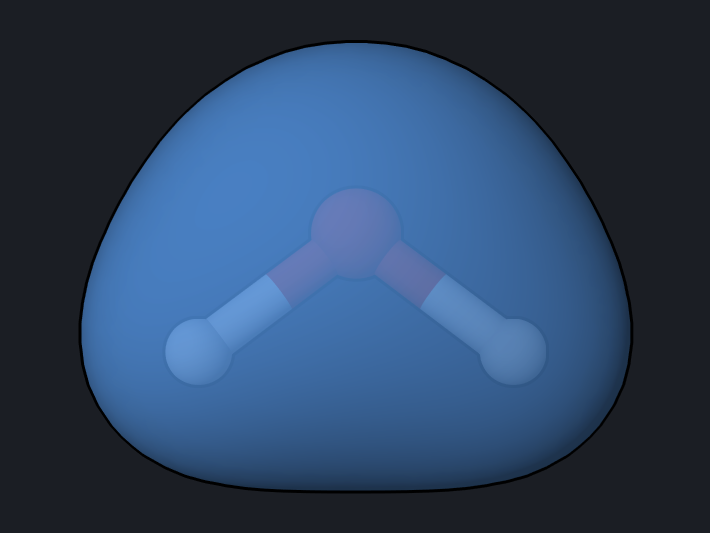

2a1 (−27.9 eV): O 2s with O–H bonding

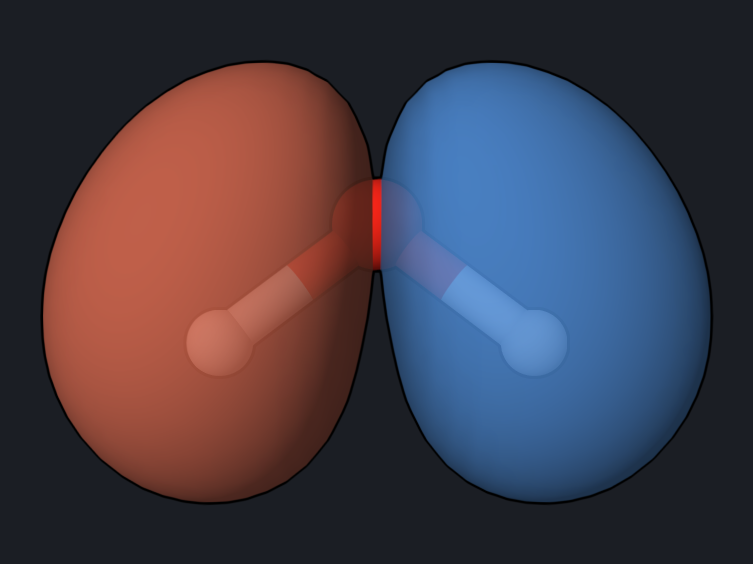

1b2 (−14.5 eV): in-plane O–H bonding

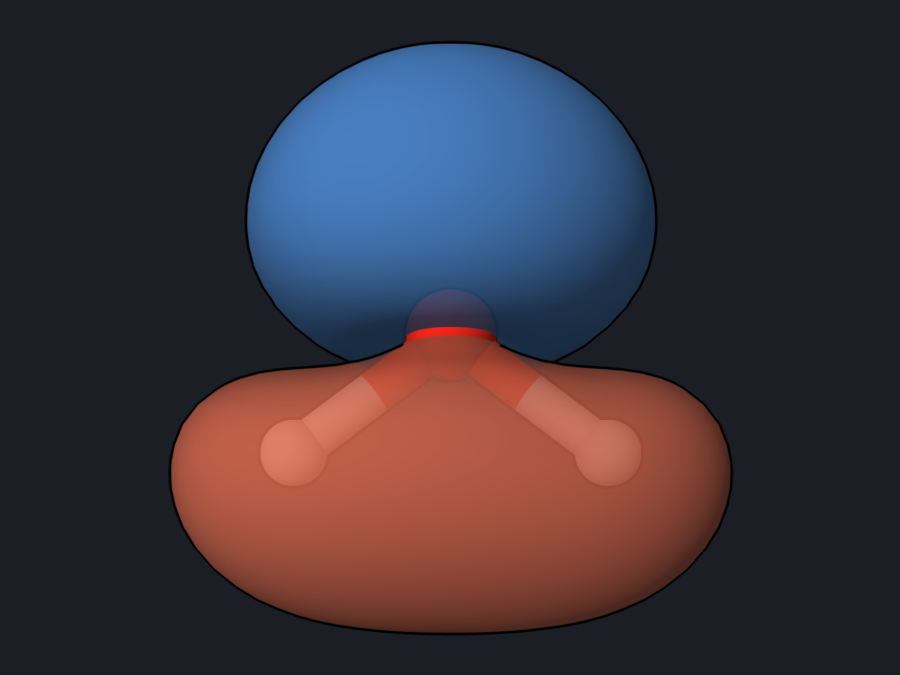

3a1 (−10.5 eV): in-plane lone pair

1b1 HOMO (−8.3 eV): out-of-plane lone pair

4a1 LUMO (2.2 eV): O–H antibonding

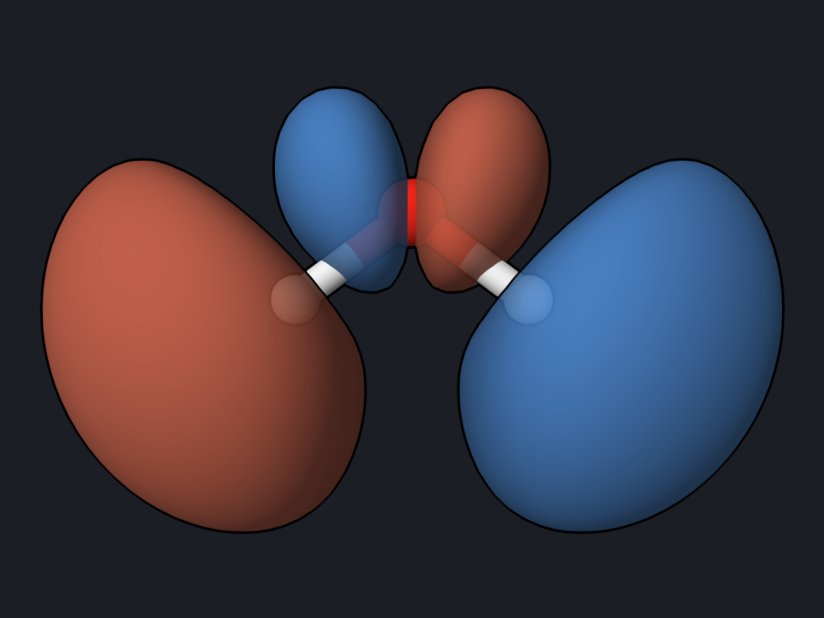

2b2 (4.6 eV): O–H antibonding

Look at the orbitals

The orbitals are in water-scf_scf_rhf_pbe0_6-31gs.molden. Open this file in OQP Studio Analysis or in OpenqpView and select orbital 5 (HOMO) or 6 (LUMO). The pictures above use an isovalue of 0.05 a.u.; red and blue mark the two signs of the orbital.

Atomic charges on a larger molecule

The same properties(...) call works for any molecule. For acetone at its PBE0/6-31G* geometry (acetone-charges.oqp), the dipole moment is 2.856 D and the Mulliken charges are O −0.427, carbonyl C +0.452, methyl C −0.611, and H +0.194 to +0.210. OQP Studio can color the atoms by these charges and print each value on its atom:

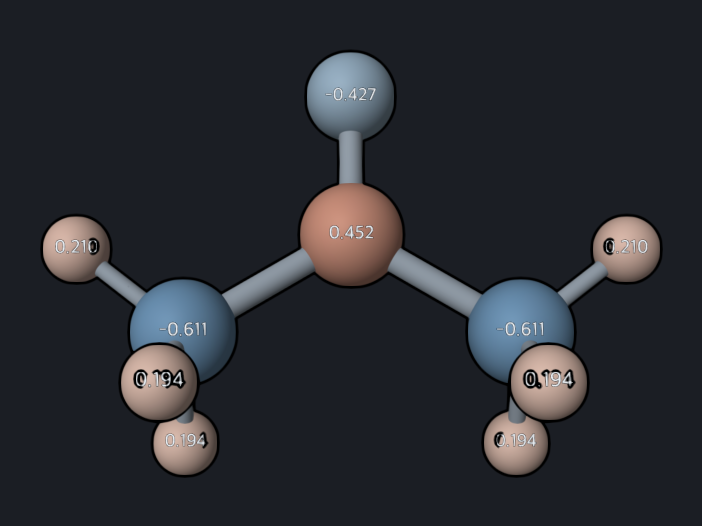

Acetone, Mulliken charges shown on the atoms in OQP Studio

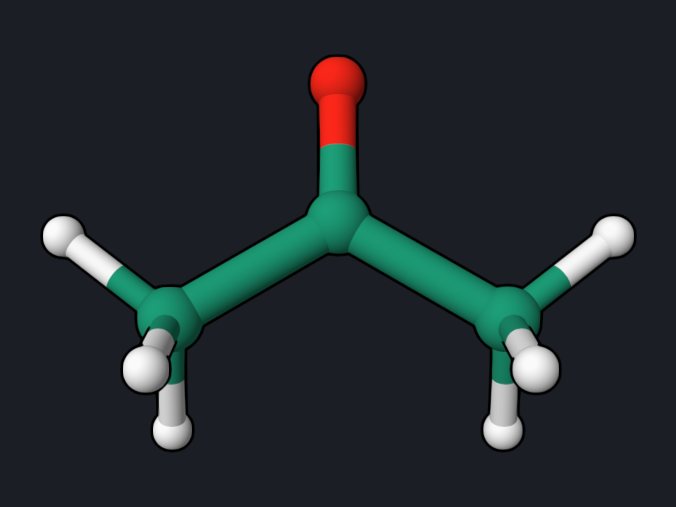

Acetone

Try next

• Change 6-31g* to cc-pvtz: the dipole moment drops to 1.93 D, closer to experiment.
• Replace dft/pbe0 with hf for a Hartree–Fock calculation; the HOMO–LUMO gap grows from 10.5 eV to 19.2 eV.
• Add lowdin to scf_prop for Löwdin charges, for example scf_prop="el_mom,mulliken,lowdin".

See also: HF and DFT, properties.
